Temperature and coating thickness in powder coating
Temperature, time and coating thickness determine whether a powder coating provides reliable protection or subsequently causes issues such as adhesion problems, colour variations or customer complaints. By carefully coordinating these parameters, the process is stabilised, waste is reduced and consistent finishes are achieved.
Why temperature and film thickness go hand in hand
Powder coatings only cure completely once the component has reached the required temperature for the specified curing time. At the same time, the film thickness affects the flow behaviour, appearance and durability.
In practice, a coat that is too thick or too thin often results in uneven surfaces, stress, reduced protective properties or fitting problems.
The temperature during powder coating: What really matters?
In practice, people often talk about the oven temperature. However, it is the object temperature (component temperature) that is crucial for cross-linking.
- Oven temperature: the air/room temperature measured inside the oven.
- Object temperature: The temperature at the workpiece, i.e. where the paint needs to react.
- Practical effect: Thin-walled parts reach the required temperature quickly, whereas thick-walled components take considerably longer. As a result, a mixing rack can quickly become too cold (under-curing) or too hot (over-curing).

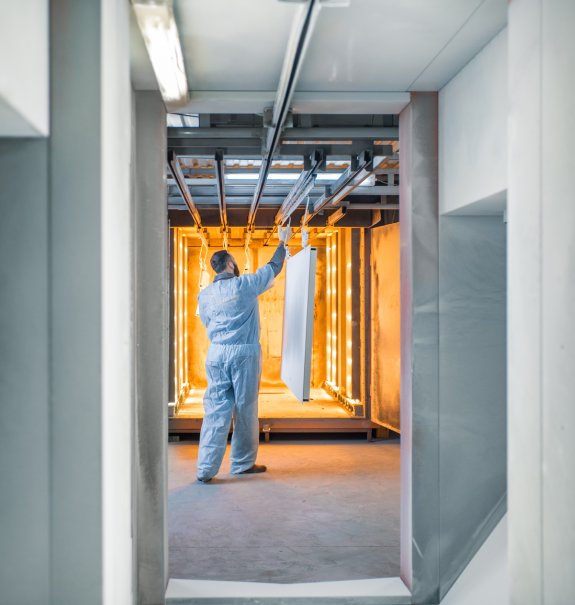

In the powder coating process, components are typically heated in an oven within a temperature range of approx. 150 °C to 200 °C.
Temperature and time under control: defining the firing window
In powder coating, the object temperature and dwell time in the oven are key factors in determining whether the coating cures completely and produces an even, flawless surface. To achieve a robust process or curing window, three factors should be combined:
- Curing conditions from the technical data sheet (e.g. 10 minutes at 180 °C object temperature).
- Heating time of the component until the target object temperature is reached.
- Hold time at the object temperature (the actual curing time).
A practical approach to estimating the residence time in conventional ovens takes into account not only the curing time but also the substrate thickness.
A practical rule of thumb for use with steel: Allow approximately 6 minutes for the first millimetre of wall thickness, then around 3 minutes for each additional millimetre – in addition to the system’s curing time. The exact values should be validated for the specific furnace, geometry and material.
Key factors affecting temperature and time
To ensure that the object temperature specified in the data sheet is actually reached and that the curing time is reliably adhered to, several influencing factors must be taken into account in practice. These factors determine how quickly the component heats up, how evenly the heat is distributed, and how consistent the process is across different batches.
Component dimensions and wall thickness
Material and thermal conductivity
Rack occupancy, shadowing and component spacing
Oven type, air velocity, proportion of radiant heat
Preheating/tempering (e.g. to reduce moisture and outgassing)
By taking these factors into account and regularly verifying the parameters via object temperature measurements, you can establish a reliable firing window and reduce common defects such as under-hardening, orange peel or outgassing pores.
Powder coating: Temperature depending on the material
The ideal setting depends not only on the powder coating, but also on the workpiece. This process overview serves as a guide:
Material / Component Type | A common challenge | Practical Note |
|---|---|---|
Steel (thick-walled) | long warm-up time | Measure the object temperature, calculate a realistic dwell time |
Aluminium (thin-walled)
| rapid heating, risk of warping | Keep the temperature profile tight; avoid overfiring and warping |
Castings / porous substrates | Outgassing may occur | Ensure that the surface is thoroughly tempered and properly pre-treated, or alternatively use primers and/or topcoats with good degassing properties. |
Mixing racks | Under- and over-connectivity are both possible | Separate parts or secure process windows via a data logger |
When components made of different materials are coated together, it is often advisable to use a separate curing profile (or separate racks) to reduce the risk of under- or over-curing.
Coating thickness in powder coating: Guide values and tolerances
Bei der Pulverbeschichtung beeinflusst die Schichtdicke Schutzwirkung, Optik, Kantenabdeckung und die Montagefähigkeit. Als praxisnaher Idealbereich gelten häufig Werte von 60 bis 80 µm, sofern das eingesetzte System keine abweichenden Vorgaben macht.
Decorative and standard protection:
approx. 60–80 µm (at 60 µm, the term ‘ultra-thin-film powder’ is often used)
Fits, threads, custom parts:
Plan for the lower end of the range, define masking and measurement points
Requirements for protection and edge covering:
often 80–120 µm (depending on the system configuration and application)
Special applications:
>120 µm due to the image frame effect, electrostatic interference, complex 3D geometries or overspray – achievable only with suitable powder systems and process control
Coating thickness tolerance: Why it varies
In powder coating, applying a uniform, standardised coating thickness tolerance that is identical for all components is generally not practical. The actual coating thickness achieved depends heavily on the component geometry, the electrostatic charge, the application parameters and the rack configuration. This results in typical variations between the surface, edges and internal areas, even with identical settings.
The following approach has proven effective for robust specifications:
- Target value plus minimum film thickness: crucial for achieving the required performance within the system
- Maximum value minimises fitting problems, surface defects and internal stresses
- Define measurement points based on component geometry: surface, edge, recess (Faraday effect in recessed areas)
Defects relating to temperature and coating thickness in powder coating
Deviations in the baking process (object temperature and dwell time) or in the film thickness have a direct impact on the curing, adhesion, appearance and durability of the coating. The critical point is that many effects are not immediately visible, but only become apparent during quality testing, after assembly, or under real-world or corrosive conditions in service.
That is why it is worth having a clear understanding of typical failure patterns and specifically planning appropriate testing methods:
Deviation | Possible consequence | Typical test |
|---|---|---|
Under-networking (too cold/too short) | poor adhesion, reduced durability | Cross-hatch test, scratch test, corrosion and chemical resistance tests, DSC analysis |
Overcooking (too hot/too long) | Yellowing, loss of gloss, embrittlement | visual assessment, colour and gloss measurement |
Coating too thin | Coating thickness measurement, corrosion testing | Ensure that the surface is properly tempered and pre-treated, or alternatively use primers and/or topcoats with good degassing properties. |
Coating too thick | Stress, cracks, blisters, fitting problems | Coating thickness measurement, optics, mechanical testing |
When components made of different materials are coated together, it is often advisable to use a separate curing profile (or separate racks) to reduce the risk of under- or over-curing.
Practical checklist for reproducible results
Consistent powder coating quality is achieved when curing, film thickness, application and pre-treatment are maintained within defined parameters and regularly verified.
Use the technical data sheet: Define the curing curve and the minimum and maximum film thicknesses.
Measuring the temperature profile: Check the object temperature at the most critical component (thick-walled, shaded).
Specify the coating thickness in accordance with the component: Measurement points, minimum and maximum values.
Stabilise the application: Keep the ground connection, gun settings, powder feed and booth climate constant.
Ensure thorough pre-treatment: cleanliness, conversion coating, annealing for critical substrates.
